Supports
Blender 5 and older versions
Transformations
Corrections (Up Vector, Rotate by, Scaling Multiplier)
CAD Integration
Professional workflow from Siemens NX and SolidEdge
Material Support
Preserves geometry and materials from CAD files
What is Parasolid and Which CAD Software Uses It?
Parasolid is a geometric modeling kernel used by leading CAD software applications for 3D solid modeling. It provides the mathematical foundation for creating, editing, and analyzing complex 3D geometry.
Supported CAD Applications:
- Siemens NX (formerly UG)
- Siemens Solid Edge
- MasterCAM
- KeyCreator
- SolidWorks (some versions)
- ANSYS SpaceClaim
- Bentley MicroStation
- Other Parasolid-based applications
File Formats Supported:
.x_t (text format) and .x_b (binary format) - These are the standard Parasolid file extensions that contain precise 3D geometry data.
Pricing
Blender Parasolid Importer
Blender
Parasolid Importer
How to Install and Use the Plugin
- Open Blender.
-
Navigate to Edit > Preferences.
-
Click on Add-ons, then select the dropdown arrow at the top right and click
Install from Disk.
-
Locate the path where the ZIP file was downloaded, then click Install from Disk.
-

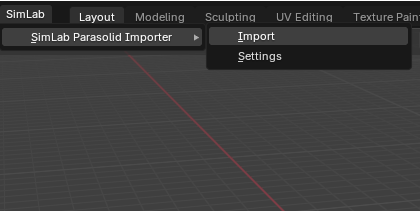

Go to the SimLab tab and locate the Parasolid Importer section, as shown in the image.
- To obtain a trial license, open Settings and follow the steps provided here.
Parasolid to Blender Import - Frequently Asked Questions
- What information is imported from Parasolid models to Blender?
The SimLab Parasolid importer transfers complete geometries and materials from Parasolid files to Blender 5, preserving the original CAD model structure and appearance.
- What versions of Blender support Parasolid import?
The plugin supports Blender 5 and older versions, working on both Windows and macOS operating systems for professional CAD workflows.
- What control options are available for imported Parasolid files?
The plugin provides transformation controls including model scaling, up vector adjustment, and rotation settings. Default settings work automatically for most models while allowing custom adjustments when needed.
- Which CAD software files can be imported using this Parasolid plugin?
The plugin supports Parasolid files (.x_t and .x_b formats) from Siemens NX, SolidEdge, and other CAD applications that use the Parasolid geometric modeling kernel for professional 3D design workflows.
Subscription licenses:
- Will I be able to install the latest version while I have a subscription license?
Yes, a subscription license will make you always up to date with the latest version.
- What happens when my subscription ends?
You can renew your subscription (auto renewal option is available), or you can cancel it.
- How can I activate my license?
After buying a subscription you will get a key, follow the steps described on the licensing page.
If you face any problem, please send an email to license@simlab-soft.com
Trial licenses:
- How to request a trial license? and for how long it would be valid?
Check this page for step by step instructions on how to request and activate a trial license.
Trial licenses are valid for 14 days or 30 trials whichever comes first.
